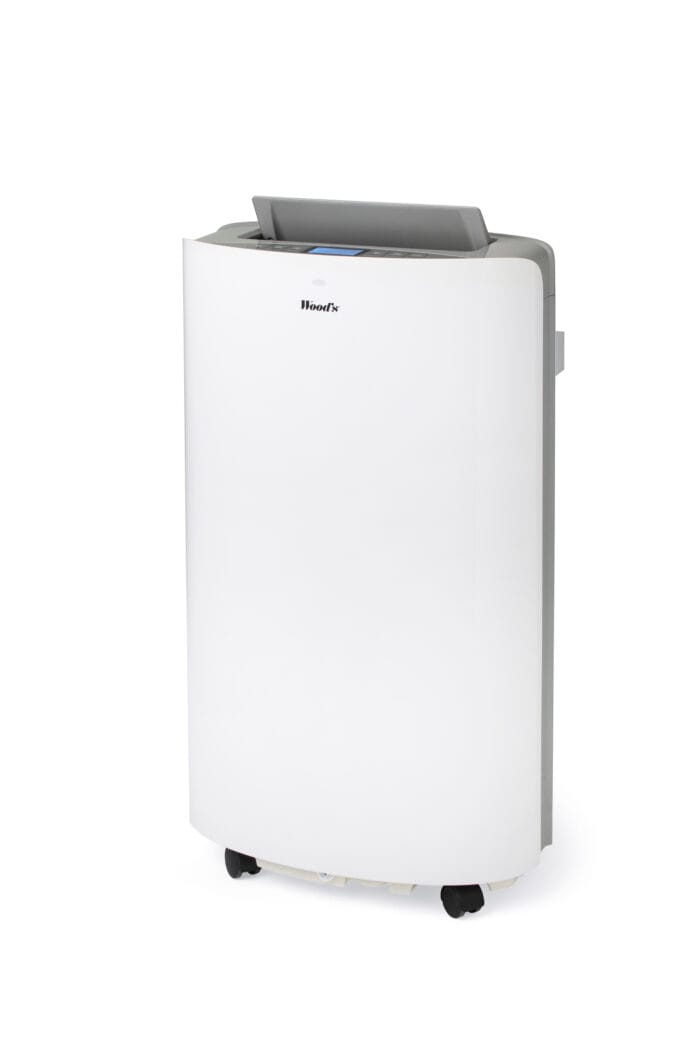

Wood's Cortina AirSwitch

Troubleshooting: air conditioning

For more detailed troubleshooting, see the product manual. All our operating instructions in this range can be found by clicking on the link. If you are not able to get the help you need, please contact us for assistance.

Capri AC


Error code: E0 = Room temperature sensor failed


Error code: E1 = Condenser temperature sensor failed


Error code: E2 = Water tank full when cooling. Take off rubber stopper and empty the water


Error code: E3 = Evaporator temperature sensor failed


Error code: E4 = Water tank full when heating. Please empty the water tank


Cortina 12K/Cortina 9K/Cortina 12K Wifi/Cortina 12K Smart home/Cortina 12K Duo/Cortina Air Switch


Error code: CH01 = Room temperature sensor failure


Error code: CH02 = Tube temperature sensor failure


Error code: E4 = Anti-freeze protection. Restore the functions automatically once anti-freeze protection is over


Error code: FL = Water tank in chassis is full. Drain the condensate and re-start the unit


Venice White 18k / Venice 18k smart home / Venice Silver 18k


Error code: E0 = Room temperature sensor error. Submit for service action.


Error code: E1 = Condenser temperature sensor error. Submit for service action.


Error code: E2 = Full water collector in cooling position. Remove the plug at the bottom of the unit and drain the water.


Error code: E3 = Evaporator temperature sensor error. Submit for service action.


Error code: E4 = Full water collector in heat mode, remove the plug at the bottom of the unit, and drain the water.


Roma / Torino AC


Error code: E0 = Room temperature sensor failed


Error code: E1 = Condenser temperature sensor failed


Error code: E2 = Water tank full when cooling. Take off rubber stopper and empty the water


Error code: E3 = Evaporator temperature sensor failed


Error code: E4 = Water tank full when heating. Please empty the water tank


PALERMO 18 / 22K AC

Error code E1 = Electrical short on both temperature sensor and PCB. Contact an electrician for repair

Error code E2 = Electrical short of temperature sensor copper tube and PCB wiring. Contact an electrician for repair

Error code E3 = Indicates water tank full or bad contact with power plug. User needs to pull out the rubber stopper which is located at the bottom of the unit, to drain the water away. Or checking if the power plug is fit well

Venezia White 18k/Venezia 18k smart home/Venezia Silver 18k.

Error code E0 = Room temperature sensor failed

Error code E1 = Condenser temperature sensor failed

Error code E2 = Water tank full when cooling. Take off rubber stopper and empty the water

Error code E3 = Evaporator temperature sensor failed

Error code E4 = Water tank full when heating. Please empty the water tank
