    Troubleshooting: Dehumidifier

    For more detailed troubleshooting, see the dehumidifier’s manual. You will find all operating instructions under our range here. If you are not able to get the help you need, please contact us for assistance.

    The dehumidifier does not start

    • Check that the dehumidifier is connected to an electrical outlet.
    • Check that the fuse has not blown.
    • Check that the water tank is correctly inserted.
    • Check that the float hangs freely in the water tank.
    • Check that the room temperature does not exceed or fall below the dehumidifier limit. Most dehumidifiers can operate between + 5° C and + 35° C.
    • Check that the hygrostat works by setting the dehumidifier to continuous dehumidification, the dehumidifier should then start. The dehumidifier with a mechanical hygrostat should start when you turn the hygrostat knob to max.

    The dehumidifier does not provide water

    • Check that the fan is running.
    • Make sure that nothing blocks the airflow to and from the dehumidifier. The dehumidifier must be at least 30 cm from surrounding surfaces.
    • Check that the compressor is running. Keep in mind, however, that the dehumidifier may be inside a defrost cycle. Start by waiting 35 min.
    • Check that the air filter is not clogged. Clean or replace the filter if necessary.
    • Check that no dust or dirt prevents the water from running down into the water tank or hose.

    Abnormally high noise level

    • Increase the distance between the dehumidifier and surrounding surfaces.
    • Clean or replace the air filter if necessary.
    • Check that the dehumidifier is on a flat and stable surface

    Ice formation on the dehumidifier’s cooling coils

    • Check that no dust or the like obstructs the flow of air through the machine.
    • Check that the temperature in the room does not fall below + 5° C. At lower temperatures, the dehumidifier cannot defrost.

    The dehumidifier does not switch off when the water tank is full

    • It is important that the float is not stuck in the water tank. The float must be able to move freely, along with the water level in the tank.

    Error codes: WCD6/HG

    Error code: E1 = Temperature sensor failure

    Error code: E2 = If E2 is shown in the display, the humidity sensor may be defective. Try unplugging the power cord, wait 10 seconds, and reconnect it. If the error code persists, contact your dealer.

    Error code: E4 = The pump is malfunctioning. Disconnect the unit, detach the pump and clean the filter insert. Re-attach the pump and connect the unit. If the error code persists, contact your dealer.

    Error codes: SW20/22/38/42/45/59 / DSC50FM / ED50FB

    *The machine freezes – Sensor failure or coolant leakage, submit for service action.

    *The machine does not start – Below 30% humidity.
    If you turned the hygrostat down and immediately turn it up again, there will be a delay in the compressor.

    Error codes: DSC70E / ES

    Error code: E1 = humidity sensor failure.

    Error code: E4 = The pump is malfunctioning. Disconnect the unit, detach the pump and clean the filter insert. Re-attach the pump and connect the unit. If the error code persists, contact your dealer.

    The display flashes = temperature sensor fault, submit for service

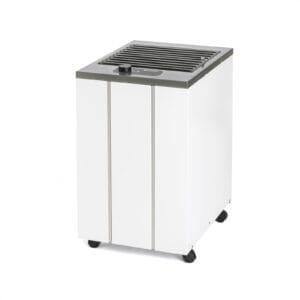

    Error codes: LD24/40Pro

    *The machine freezes – Sensor failure or coolant leakage, submit for service action.

    *The machine does not start – Below 30% humidity.
    If you turned the hygrostat down and immediately turn it up again, there will be a delay in the compressor.

    Error codes: LD40/44/48Pro+

    *Display freezes – submit for service action.

    Error code: E2 – If E2 is shown in the display, the humidity sensor may be defective. Try unplugging the power cord, wait 10 seconds, and reconnect it. If the error code persists, contact your dealer.

    Error codes: MRD17 / 20 / MRD20/25

    Error code: *C1 = Humidity sensor failure

    Error code: *C2 = Temperature sensor failure

    Error code: *C3 = Coolant leakage

    Error codes: MDK11 / 13/21/26

    Error code: *C1 = Humidity sensor failure

    Error code: *C2 = Temperature sensor failure

    Error code: *C8 = Coolant leakage

    Error codes: MRD10/14

    Error code: *Cont/defrost blinks = coolant leakage

    Error codes: MRD20GW/25GW

    Error code: *C1 = Humidity sensor failure

    Error code: *C2 = Temperature sensor failure

    Error code: *C3/C8 = Coolant leakage

    Red light flashes – Dehumidifer is connected to Wi-Fi.

    Röd lampa fast sken – Empty the water tank.

    Error codes: MRD12G

    Error code: *E1 = Evaporator temperature sensor failed

    Error code: *E2 = If E2 is shown in the display, the humidity sensor may be defective. Try unplugging the power cord, wait 10 seconds, and reconnect it. If the error code persists, contact your dealer.

    Error code: *LO = The humidity level is lower than 35%, changes when the level rises again

    Error code: *Hi = The humidity level is above 95%, changes when the level goes down again.

    Error code: *Lights up red = Higher humidity level than 70%

    Error code: *Lights up green = Humidity level is between 50-70%

    Error code: *lights up blue = Humidity level is lower than 50%

    Error codes: MDX14

    Error code: FL = Water reservior is full. Empty the water reservior and put it back.

    Error code: E1 = Temp-humidity sensor failure. Replace the temp-humidity sensor

    Error codes: MDX20/20P

    Error code: E1 – Humidity sensor failure

    Error code: E2 = Tube temperature sensor failure: display “E2”

    Error code: FL = Water Full

    Error codes: M10 / G

    Error code: *FL = Water tank is full, empty the water tank.

    Error code: E1 = Defrosted sensor failed. Replace defrosted sensor.

    Error codes: AD20 / 30 / G

    Error code: C1 = Malfunction of defrost sensor

    Error code: C2 = Malfunction of humidity or temperature sensor

    Error code: *C7 = Fan motor failure

    Error code: C8 = Refrigerant leakage

    Green: no pollution detected. Fan works on speed 1.
    Blue: light pollution detected. Fan works on speed 2.
    Yellow: moderate pollution detected. Fan works on speed 3.
    Purple: heavy pollution detected. Fan works on speed 4.
    Red: very heavy pollution detected. Fan works on speed 5.

    Error codes: WDD80

    Alarm = There might be a malfunction of the unit.

    Error codes: WDD90

    Alarm = There might be a malfunction of the unit.

    Error code: *C2 – temperature sensor failure

    Error codes: DSC95P

    Error code: E2 – If E2 is shown in the display, the humidity sensor may be defective. Try unplugging the power cord, wait 10 seconds, and reconnect it. If the error code persists, contact your dealer.

    Error code: E4 = The pump is malfunctioning. Disconnect the unit, detach the pump and clean the filter insert. Re-attach the pump and connect the unit. If the error code persists, contact your dealer.

    Error codes: WLD1

    Error code: E2 – If E2 is shown in the display, the humidity sensor may be defective. Try unplugging the power cord, wait 10 seconds, and reconnect it. If the error code persists, contact your dealer.
